Control4 Drivers - Satel Integra

Satel Integra driver enables integration of Control4 system with Satel Integra security system. It uses network connection to communicate with Satel Integra security system through ETHM-1 Plus integration module.

The following Satel Integra models are supported:

  • INTEGRA 24
  • INTEGRA 32
  • INTEGRA 64
  • INTEGRA 128
  • INTEGRA 128-WRLSIM300
  • INTEGRA 128-WRLLEON
  • INTEGRA 64 PLUS
  • INTEGRA 128 PLUS
  • INTEGRA 256 PLUS


    • FEATURES

  • arming/disarming in different modes (home, away)
  • monitoring partitions status (arm mode, alarms)
  • monitoring inputs, zones and outputs status
  • controlling outputs
  • easy setup - partitions and zones configuration downloaded directly from security system

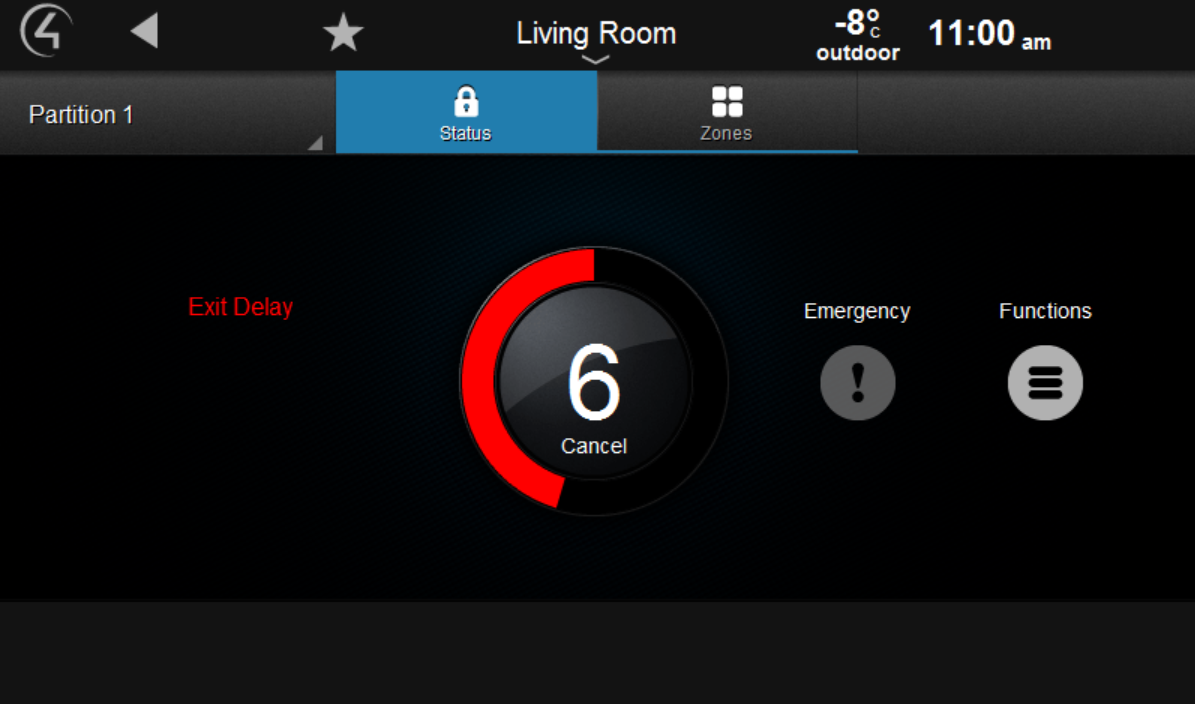

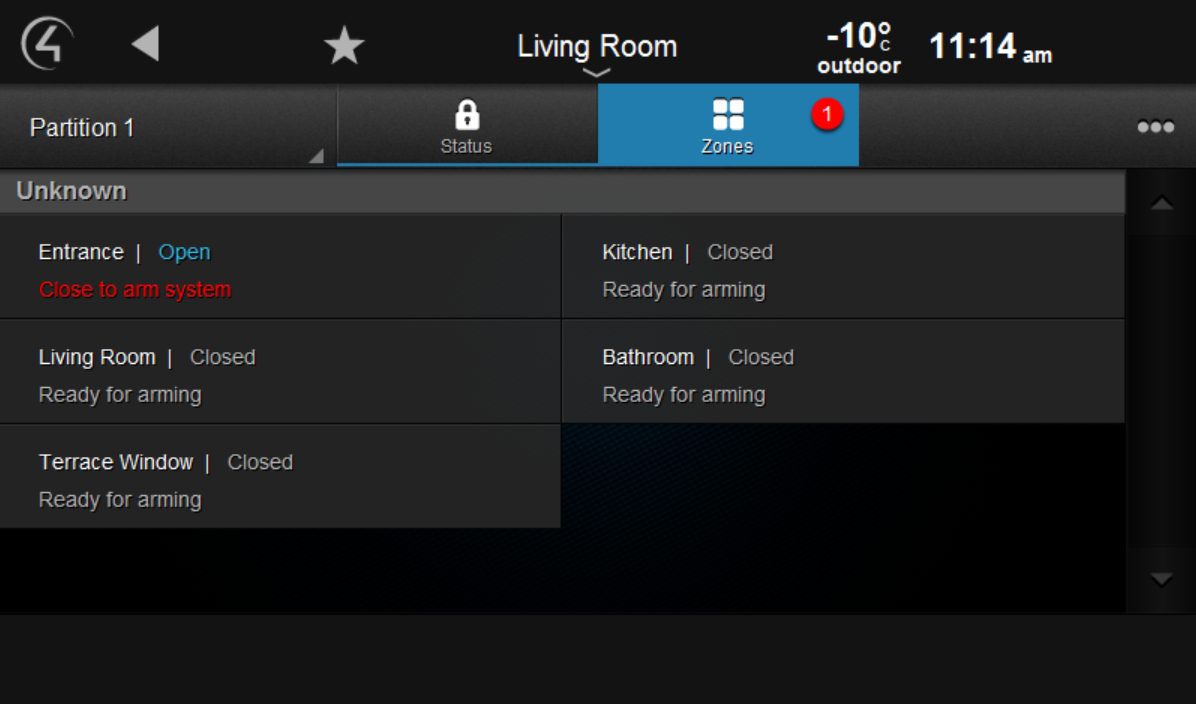

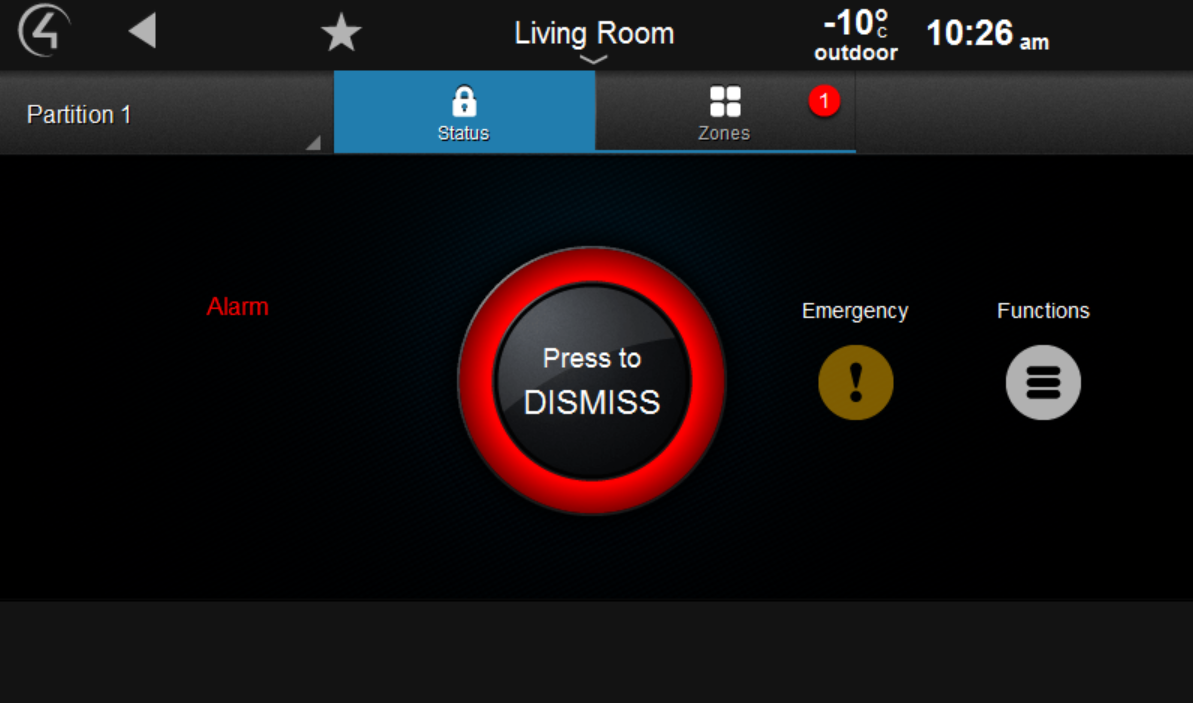

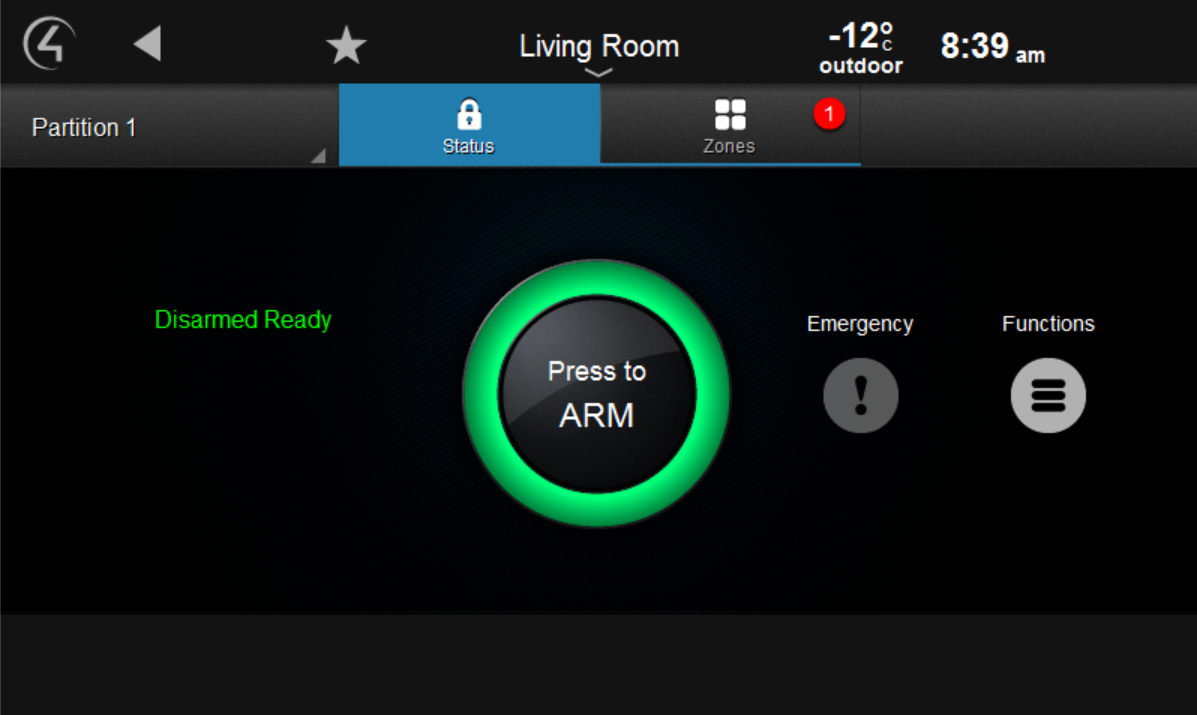

    • Security system can be monitored and controlled through Control4 programming and through Control4 GUI devices using new version of Control4 Security User Interface (introduced in OS 2.8).
    Security system outputs can also be controlled using Control4 Lights User Interface with Satel Integra Light Widget driver.

    REQUIREMENTS

    The system has to meet the following requirements for the driver to work properly:

  • Control4 OS version 2.8.0 - 3.3.0
  • Satel Integra firmware version 1.13 2015-03-14 or higher
  • ETHM-1 Plus module firmware version 2.01 2015-03-19 or higher

    • This driver does not work properly with legacy version of ETHM-1 module (ETHM-1). Make sure that you are using ETHM-1 Plus module.


    DOWNLOAD

  • Satel Integra Driver (v. 25)
  • Satel Integra Light Widget Driver (v. 11)
  • Documentation
